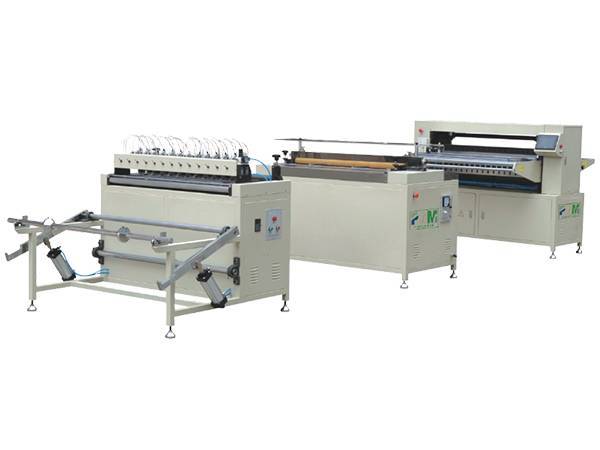

Full-Auto Knife Paper Pleating Machine – Max. 1050 mm Width
Specification
| Product Name | PLCZ100-1050-II | Pre-Heater Power | 4 kW |
| Speed | 0–200 m/min (adjustable) | Heating temperature | Normal – 200 °C |
| Pleating Height | 20–100 mm | Working Air Pressure | 0.6 MPa |
| Pleating Width | Max. 1050 mm | M/C Weight | 700 kg |
| Power Supply | 380/50 V/Hz | M/C Size (L × W × H) | 1670 × 1720 × 1800 mm |
| Motor Power | 1.1 kW |
Features
● The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.
● After marking, the filter paper will be pleated and pre-heated.
● The machine is also suitable for folding the iron wire fabric and non-woven fabric of the hydraulic filter , even the multilayer folding.
Applications
The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
