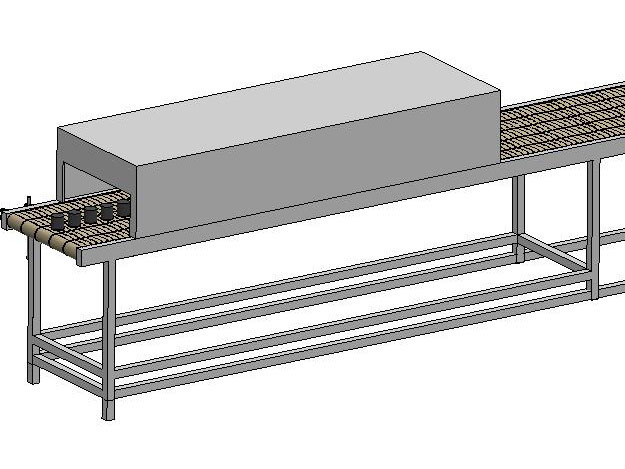

Equipment function: dry after leakage test Device speed: 10m/min Equipment size: length 9000mm, width 500mm, height 1200mm Electrical specifications: Voltage: 380V; Total power: 35KW; Air pressure: ≥0.6MPa Equipment features: The mesh belt is made of stainless steel to avoid corrosion; Oven temperature room temperature -200℃ adjustable; Using high density insulation material, the furnace body insulation effect is good.
Equipment functions: air tightness test of filter, manual loading and unloading, manipulator loading and unloading workpiece Device speed: 15 / min Equipment size: length 1400mm, width 1100mm, height 2000mm Electrical specifications: Voltage: 220V Total power: 8KW Air pressure: ≥0.6MPa

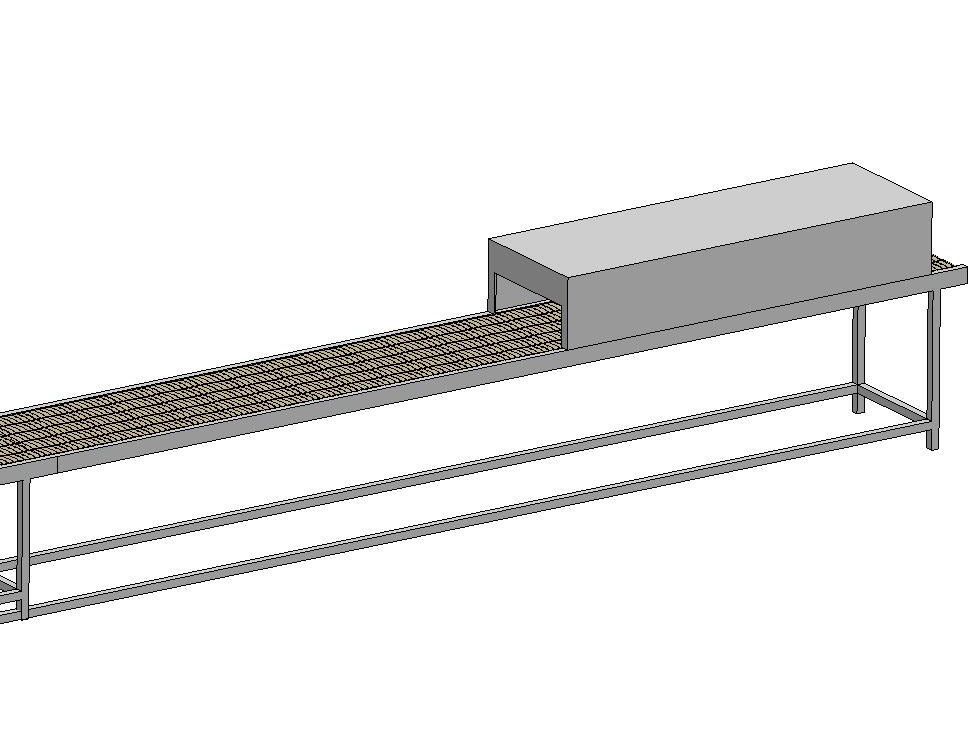

Equipment function: screen printing ink curing and leak detection after drying Device speed: 10m/min Equipment size: length 4000mm, width 500mm, height 1200mm Electrical specifications: Voltage: 380V; Total power: 35KW; Air pressure: ≥0.6MPa Equipment features: The mesh belt is made of stainless steel to avoid corrosion; Oven temperature room temperature -200℃ adjustable; Using high density insulation material, the furnace body insulation effect is good.
Device function: filter surface printing Device speed: > 35 PCS/min Equipment size: length 2850mm, width 750mm, height 1600mm Electrical specifications: Voltage 220V; Total power: 3KW; Air pressure: ≥0.6MPa Equipment features: Servo control is adopted for screen plate movement and conveying movement Screen plate support multi-direction adjustment, can be applied to a wide range of product sizes Easy to change The printing effect is good

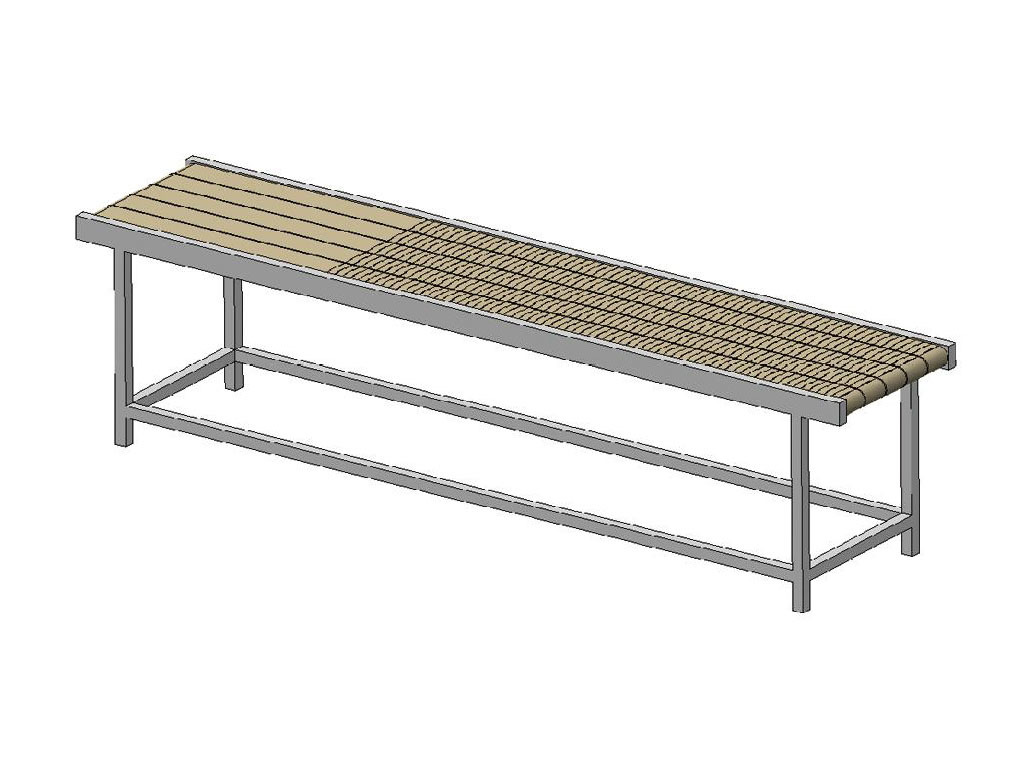

Device function: Cache filter Equipment speed: 10-15m/min Equipment size: length 2000mm, width 600mm, height 900mm Electrical specifications: Voltage: 220V; Total power: 120w Equipment features: When switching products, it can cache products and adjust machines in sections The chain plate is made of POM material with smooth surface The movement mode of the chain plate is alternating forward and backward, which effectively ensures the orderly flow of the production on the surface of the conveyor belt
Device function: screw-close board and shell package Device speed: > 20 PCS/min Equipment size: length 800mm, width 1000mm, height 2100mm Electrical specifications: Voltage: 380V Total power: 8KW Air pressure: ≥0.6MPa

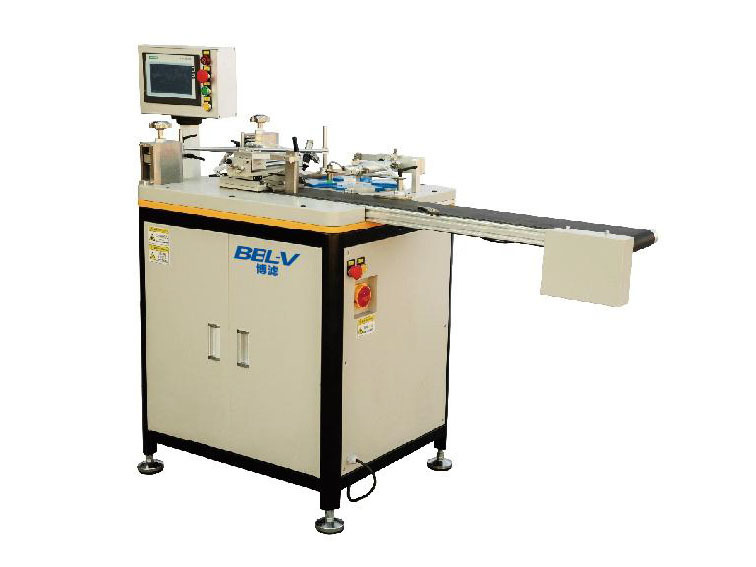

Equipment function: screw close plate with anaerobic glue Device speed: > 35 PCS/min Equipment size: length about 1500mm, width about 1000mm, height about 1500mm Electrical specifications: Voltage: 220V; Total power: less than 3KW; Air pressure: ≥0.6MPa Equipment features: PLC adopts Omron series, cylinder adopts Yadke series Using manual feeding method, one person can complete the assembly of the screw tight plate and check valve, saving one person, stabilizing the production rhythm of the entire production line, and improving the production efficiency of the whole line

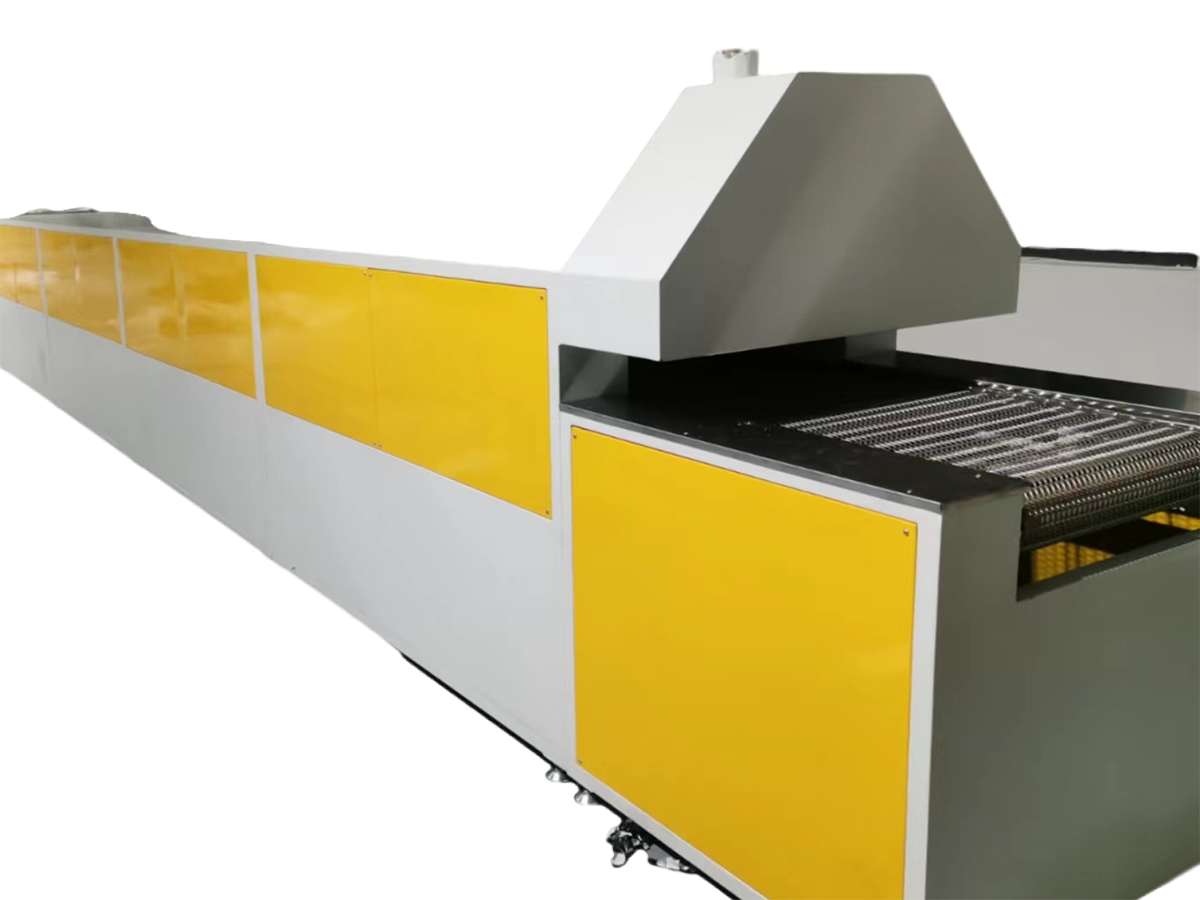

Equipment function: glue curing in the paper core and end cap Device speed: 0.5-1m/min Equipment size: length about 12000mm, width about 850mm, height about 1100mm (furnace 9000mm) Electrical specifications: Voltage: 380V50Hz; Total power: 30KW; Air pressure: ≥0.6MPa Equipment features: There are multiple points in the furnace body to collect temperature, to ensure the temperature balance in the furnace body With a number of circulating fans, to ensure that the paper core in the furnace body evenly heated High density thermal insulation material is used outside the furnace body, and the thermal insulation effect of the furnace body is good

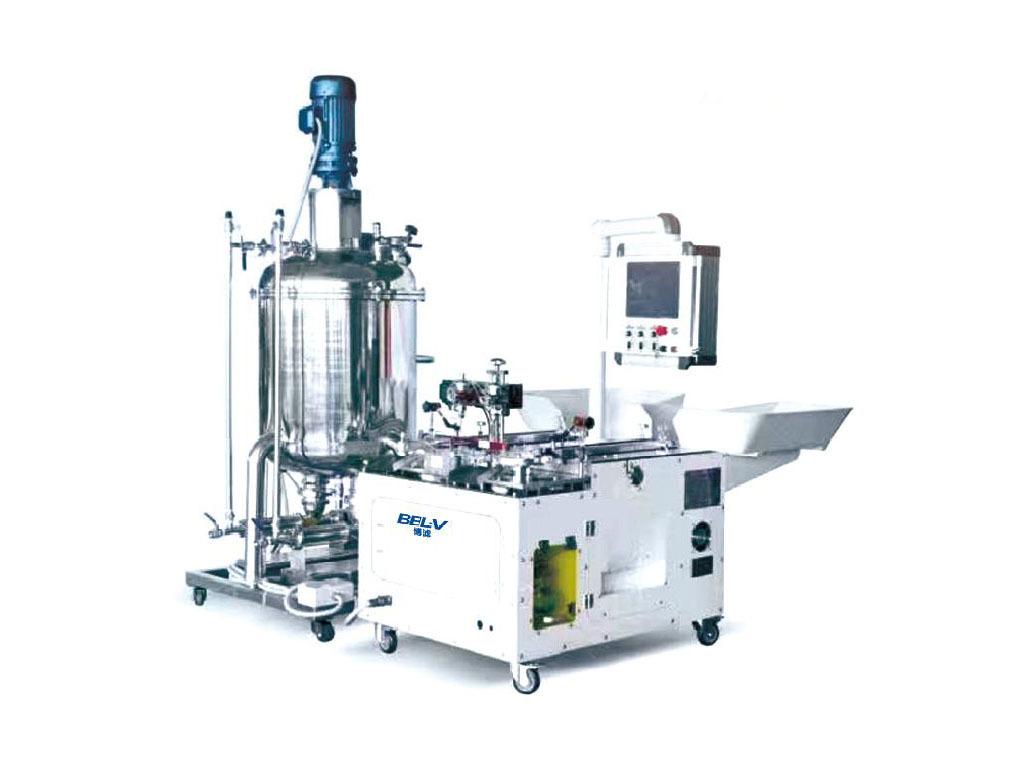

Equipment function: paper core upper and lower end cover glue Device speed: > 40 PCS/min Equipment size: length about 1600mm, width about 1100mm, height about 1700mm Electrical specifications: Voltage: 380V50Hz; Total power: 2KW; Air pressure: ≥0.6MPa Equipment features: PLC control, easy adjustment of rubber parameters The glue part adopts the integrated turntable feeding structure, which is convenient and fast to change High precision metering pump is used in the gluing part to ensure the stability of gluing
Hebei Bo Lv is a company specializing in the production offilter equipment, to provide customers with one-stop servicefrom production line design to equipment matching andthen to technical support.
