Pleating Machine
Keywords:
PLCZ150-3000-II
Details

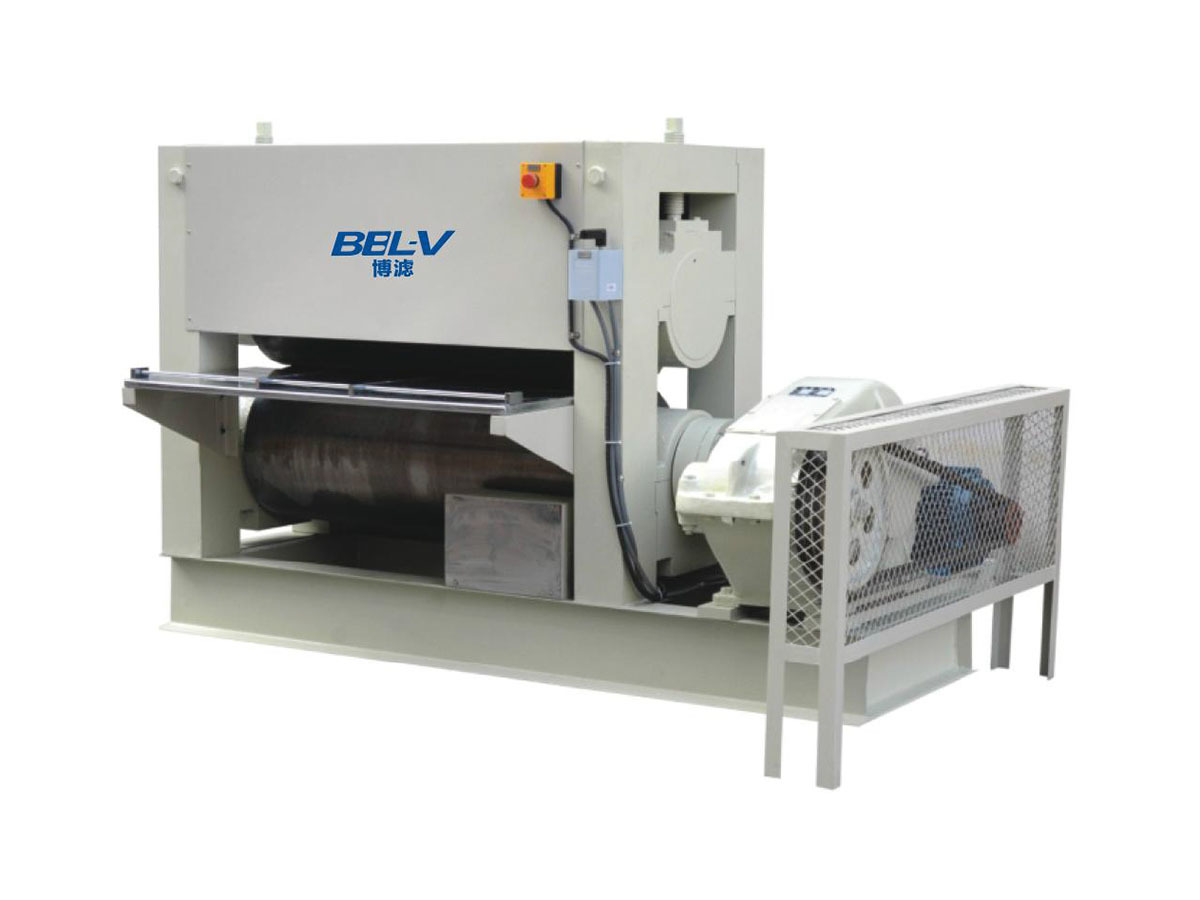

Knife Pleating Machine
Specification
| Product Name | PLCZ150-3000-II | Pre-Heater Power | 4 kW |
| Adjustable Pleating Height | 20–150 mm | Heating temperature | Normal – 200 °C |
| Speed | 0–200 pleats/min | Working Air Pressure | 0.6 MPa |
| Power Supply | 380 V / 50 Hz | M/C Weight | 2000 kg |
| Motor Power | 1.1 kW | M/C Size (L × W × H) | 3370 × 1720 × 1800 mm |
| Max. Width | 3000 mm |
Features
● The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades' distance.
● After marking, the filter paper will be pleated and pre-heated.
● The machine is also suitable for folding the iron wire fabric and non-woven fabric of the hydraulic filter, even the multilayer folding.
Applications
The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
